HIGH PERFORMANCE ANAEROBIC DIGESTION

In order to gain a competitive advantage in the anaerobic digestion industry, Berlie Technologies Inc. has created a partnership with a German company to provide a high performance anaerobic digestion technology. Since 1994, this technology has been validated at large scale on municipal sludge and certain organic wastes. It allows for shorter treatment times (about seven days), compared with conventional anaerobic digestion processes (about twenty days).

In comparison with conventional digesters, the high performance digester provides the following advantages:

  • High degradation rate (7 days)
  • Reduced capital investment
  • Low energy consumption
  • Absence of surface foam problems
  • Small digester size and footprint

DIGESTER CONFIGURATION

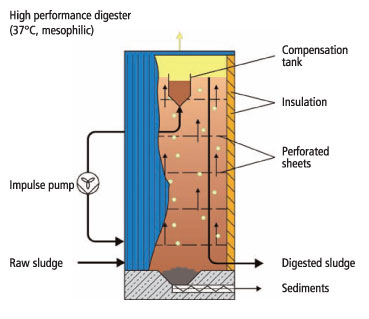

Berlie-Falco High Performance Digester Configuration

Anaerobic Digestion Impulse PumpAnaerobic Digestion Sediment Discharge System

SYSTEM OPERATIONS

The sludge flows through the digester from the bottom to the top in a plug flow fashion. The impulse pump, together with the perforated sheets, ensure a gentle local mixing of the sludge bed.

This mixing impulse takes fresh organic material to the microorganisms and separates biogas bubbles. The biogas is collected in the roof area of the digester. The energy requirements of this special system are small compared with conventional systems.

An automatic sediment discharge system allows for continuous operation without the need of emptying the digester for sediment removal.

ANAEROBIC DIGESTION

A major portion of municipal and industrial wastes is made up of organic material that can be transformed into energy, namely biomethane. The biological process on which this method is based is achieved by the action of anaerobic microorganisms, without the presence of oxygen from the air.

A variety of bacterial strains play a part in the digestion process and their composition depends on environmental conditions (substrate composition, temperature, pH, etc.). Under the action of these microorganisms, the organic material is decomposed into biogas, a mixture of methane (CH4) and carbon dioxide (CO2). Besides biogas, the digestion produces liquid and solid digestates which contain nutrients and can be reused as soil amendments.

ANAEROBIC DIGESTION PROCESS

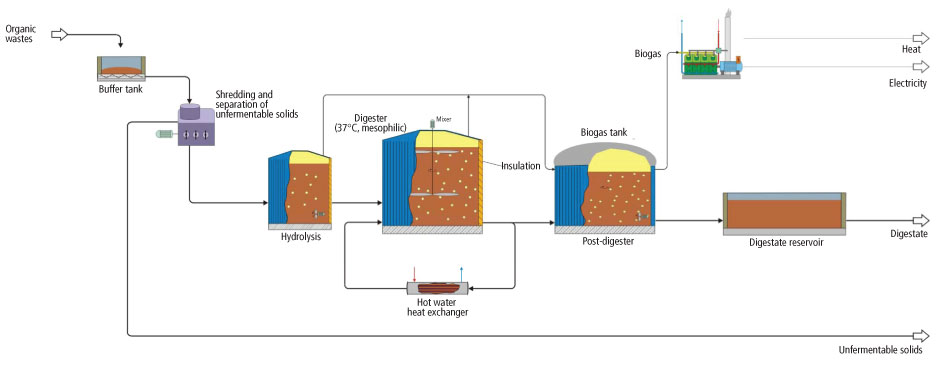

Anaerobic Digestion Process

EXPERT IN BIOSOLIDS AND ORGANIC WASTES TREATMENT

Berlie Technologies Inc. has comprehensive expertise in biosolids and organic wastes treatment. Using a turnkey approach, it can design and provide various processes and equipment to treat sludge according to each project’s specificities, including anaerobic digestion, dewatering and drying, up to more than 90% dry solids.

To optimize the value of biogas, Berlie Technologies Inc. offers various processes such as desulfurization, dehumidification, enrichment and production of electricity by means of co-generation.

Its turnkey approach integrates the following services:

  • Process and mechanical engineering
  • Customized manufacturing
  • Installation, including project management
  • Start-up and training

Need to improve existing digestion plants?

In order to provide its clients with inventive solutions, Berlie Technologies Inc. also offers services to improve existing digestion plants, such as the addition of a pre-treatment phase or a high performance digestion phase.

Download the PDF sheetBerlie-Falco - téléchargez la fiche Biométhanisation

Certifications

ASME, U, PED, ATEX
